Metallurgical Products

METALLURGICAL PRODUCTS IN IVYLAND, PA

Metallurgical Products
  • Silicon Carbide coated on “C” weight wet or Dry paper
  • Available with and without PSA backing

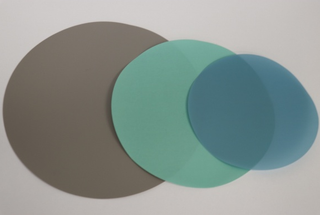

  • Diamond Lapping Film
Available in the following disks sizes:
Type E or S: 5”, 6”, 8”, 10”, 12” / 200mm, 230mm,250mm, 300mm, 305mm
  And 14” disk in type E only
Available in the following grit sizes:
  • 60E   (P60)
  • 80E   (P80)
  • 120E (P120)
  • 180E (P180)
  • 220E (P220)
  • 240E (P240)
  • 280E (P320)
  • 320E (P360)
  • 360E (P500)
Key:
  • E - Electrostatically Oriented
  • S - Slurry Coated Product
Disks are packed 100 PCS per box
  • 400E   (P800)
  • 500E   (P1000)
  • 600E   (P1200)
  • 800E   (P2400 Fine)
  • 1000E (P3000 Fine)
  • 1200E (P4000 Fine)
  • 800S (P2400 Extra Fine)
  • 1000S (P3000 Extra Fine)
  • 1200S (P4000 Extra Fine)

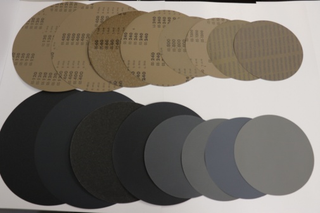

Polishing pads - TBS Abrasives, Inc. in Ivyland, PA

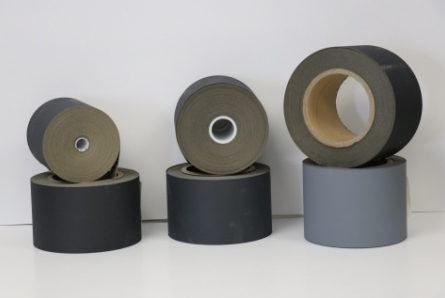

Above grits also available in plain back rolls sizes are 3” or 3 &7/16” wide by 75 feet long and 4" X 150 feet on ½”, 1”, 3” Id cores.

* Diamond Lapping Film Slurry coated: Available on 3 mil film with or without PSA sold 5 pc per pack
   Micron ranges from 0.1um thru 80um comes in 8”, 10”, 12” disks
Standard Products are available with 3 mil polyester films and standard paper base “C” wet/dry and foam backing available. Both 3 mil film and paper backs are available with a pressure sensitive adhesive (P.S.A.) applied available on sheet and disks only. Above products can be converted in the following forms.

  1. Disks (1” through 12” diameters) also available in millimeters sizes
  2. Sheets up to 13” in width
  3. Rolls from (0.150” through 13” width) 50 feet minimum length

Rolls are put up on standard cores 1” and 3” I.D.
Also available in 2, 5, & 7 mil polyester film by special order.

Diamond and aluminum oxide are color coded for easy identification. Abrasive types and micron sizes, and mil thickness other then those mentioned in the above chart are available by special order.

TBS Abrasive Inc. also carries Micro Finishing Films (9um through 180um) along with coolants, slurries, compounds, polishing pads and abrasive powders.
Contact TBS Abrasives, Inc. today for more information and ordering products at 215-674-8820.
