Dynalap Products

DYNALAP PRODUCTS IN IVYLAND, PA

Dynalap Products

DYNALAP is an ultra fine dispersed uniform coated abrasive product on polyester film or wet /dry paper. This process ensures high flexibility, strength and wear characteristics. DYNALAP can be used wet or dry to achieve the best precision finish that is required in today's markets. DYNALAP lapping films are available in different mineral types and a Varity of micron sizes.


DYNALAP DIAMOND

ROLL FINISHING PRODUCTS

TBS Dynalap diamond is a extremely uniform precision coating applied to 3mil or 5 mil polyester film. That is comprised of a unique resin system with a superior made metal bond diamond powder with a blocky shape and a narrow particle size distribution, which produces a very flexible and flat consistent product which is a excellent choice for your super finishing need which can be used in a wet or dry process it is available in two different types of product and range of micron sizes.
Dynalap Diamond type- SP Finishing Lapping Film
Available in micron sizes: 1um, 3um, 6um, 9um, 12um

Dynalap Diamond type XSP Micro Finishing Film
Available in micron sizes: 15um, 30um, 45um, 60um, 76um
DYNALAP ALUMINUM OXIDE

ROLL FINISHING PRODUCTS

  • Lapping film available micron sizes 1, 3, 5, 9, 12, 15, 20, 30, 40, 60, 80um
  • Micro finishing film available micron sizes: 9, 15, 20, 30, 40, 60um
  • Available in different widths and length rolls on 3” ID or 3” Id keyed plastic cores

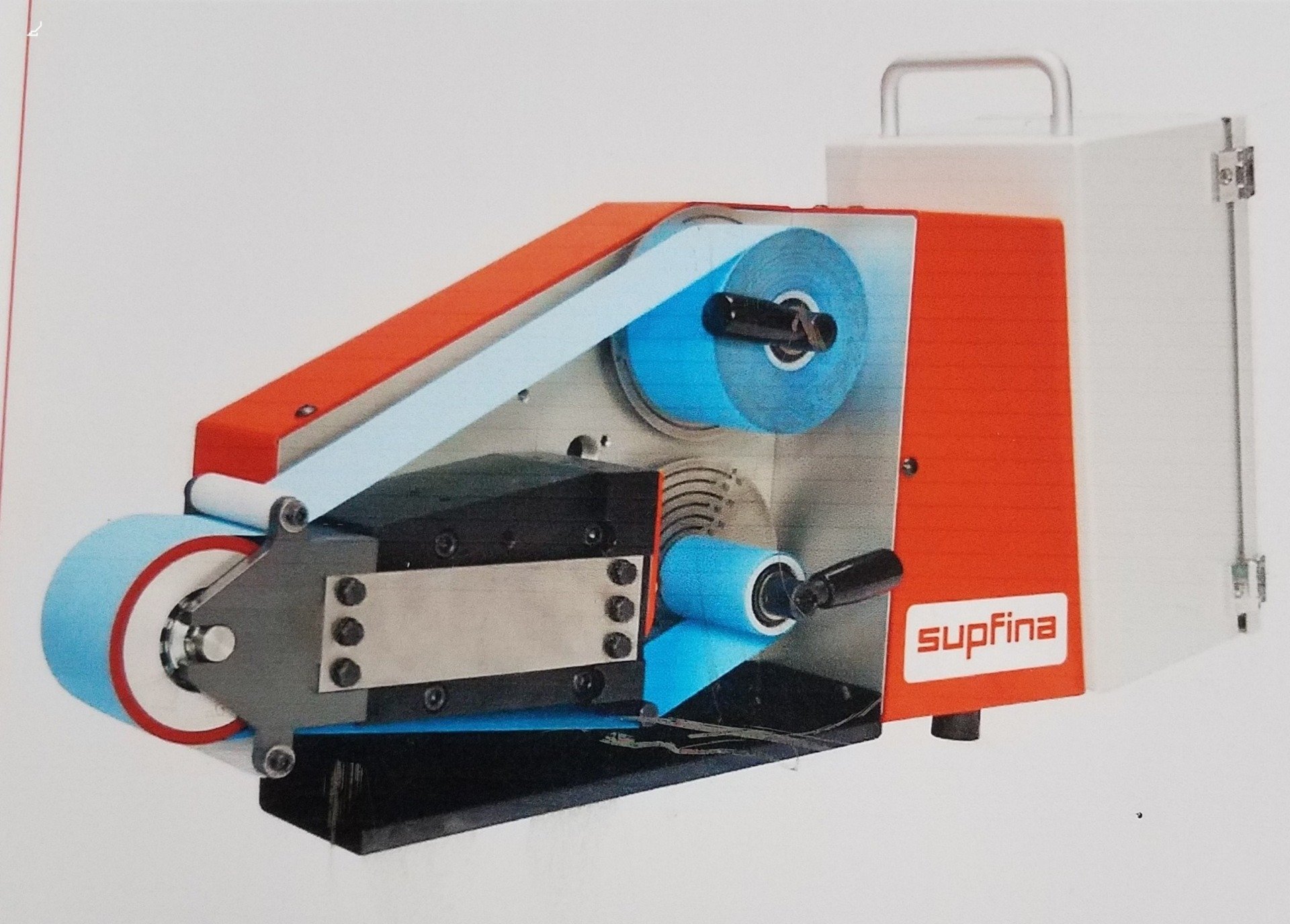

Our Diamond/ Aluminum oxide super finishing films systems provide a more consistent and predictable finish over the entire length of a roll or cylinder, and is more economical then bonded wheel systems. A fully self contained Super finisher unit using TBS Dynalap product line of micro-abrasive can be mounted on any lathe or roll grinding machine can help reduce time and cost of finishing roll surface and increase the consistency and quality of the surface that is simply not found in conventional bonded wheel systems.

TBS products are used in a vast amount of roll finishing
Paper mill, Steel mill, Rubber, Rotogravure, Plastic, Ceramic, Carbide, Specialty coated and rare metal rolls
Standard Products are available with 3 mil polyester films and standard paper base “C” wet/dry and foam backing available. Both 3 mil film and paper backs are available with a pressure sensitive adhesive (P.S.A.) applied available on sheet and disks only. Above products can be converted in the following forms.

  1. Disks (1” through 12” diameters) also available in millimeters sizes
  2. Sheets up to 13” in width
  3. Rolls from (0.150” through 13” width) 50 feet minimum length

Rolls are put up on standard cores 1” and 3” I.D.
Also available in 2, 5, & 7 mil polyester film by special order.

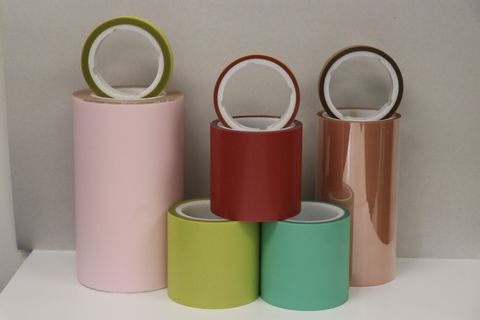

Diamond and aluminum oxide are color coded for easy identification. Abrasive types and micron sizes, and mil thickness other then those mentioned in the above chart are available by special order.

TBS Abrasive Inc. also carries Micro Finishing Films (9um through 180um) along with coolants, slurries, compounds, polishing pads and abrasive powders.
Contact TBS Abrasives, Inc. today for more information and ordering products at 215-674-8820.
